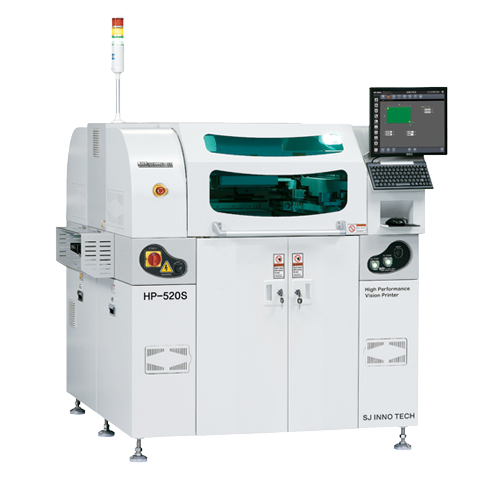

SJINNOTECH Vision Screen Printer
HP-520S

특징
- 0402 Chip, 0.3 Pitch QFP, Ø0.2MBGA 완벽 프린팅
- Squeegee 정밀 압력 제어 시스템 (Load-Cell Control)
- Machine CPK 측정 Software 기본 내장
- Close-Loop Control 기능 (Screen Printer ⇔SPI)
- 3단Conveyor 자동 폭 조절 기능
- Free Size Stencil Change
- Stencil Align & Work Table UP/DOWN System
- Array PCB Inspection Software 기본 적용으로 FPCB공정 개선
- Job File의 모든 Data 및 CPK Data 저장 기능의 MES (Traceability)
- Solder 2D Inspection System
- Cleaning시 Paper Winding 기능 (특허등록: 10-0843782)
- 인쇄 구간별 속도,압력 제어로 고정도의 인쇄 품질 실현 (특허등록: 10-0505314)
- Top Link와 Edge Guide를 이용한 완벽 PCB Clamp (특허등록: 10-0505315)
- LED 전용 대형 PCB X-axis Moving System (특허등록: 10-1166789)

옵션

- Support Pin 자동 위치 설정 기능

- Auto Solder Dispenser (Laser sensor로 솔더 높이 측정)
- Dot Dispenser 기능
- Mask, Paste, Squeegee Assembly ID 기능을 비교 가능한 Hand Barcode Reader System
- 2D Barcode Reading System (Use Camera)
- PCB 상면의 부품 감지 Sensor
- High Speed Conveyor System 5sec
- Temperature Control Unit

Spectification

항목	HP-520S	HP-680S	HP-850S	HP-1000S
Total System Alignment Accuracy and Repeatability	2.0CPK@±25um, 6-Sigma
Printing Alignment Accuracy and Repeatability	2.0CPK@±25um, 6-Sigma
Cycle time (203L X 145W mm PCB)	ExcludingPrinting 7sec *Real Time 약 13sec	ExcludingPrinting 10sec *Real Time 약 16sec	ExcludingPrinting 12sec *Real Time 약 18sec	ExcludingPrinting 20sec *Real Time 약 28sec
Stencil Frame Size (Standard, L x W mm)	600 x 550 (L x W) 650 x 550, 736 x 736	650, 736, 800, 860 x 550, 736, 800	736,800,860,920,1000 ,1050 x 736, 800, 850	920,1000,1100,1200 x 800, 900
PCB Size(L x W mm)	50 x 50 ~ 520 x 420	50 x 50 ~ 680 x 510	50x 50 ~ 850 x 510	200x150 ~ 940 x 610
Print Area (L x W mm)	50 x 50 ~ 520 x 420	50 x 50 ~ 680 x 510	50x 50 ~ 850 x 510	200x150 ~ 940 x 610
PCB Thickness	0.3 ~ 6.5mm	0.3 ~ 6.5mm	0.3 ~ 7.0mm	0.3 ~ 7.0mm
PCB Weight	2 kg	5 kg	8 kg	8 kg
PCB Warpage	0 ~ 4mm (IncThickness)
PCB Stopper	Program에 의해 자동으로 Camera가 이동하여 정확한 위치에서 Board를 정지시킴
PCB Support	마그네틱Support Pin & Block / PCB “t”에 따른 높이 자동조절 / Support Pin 높이: 73.9mm Vacuum Type 지지 가능(OPTION) / Auto Support Pin 사용 가능(OPTION)
PCB Clamping	Top Link Clamping (0.8 ~ 6t) / Top Knife Edge Clamping (0.2 ~0.8t) / Vacuum Type Possible
PCB Under Clearance	30mm
기판측면(Edge) 허용범위	Top Link Clamping: 제한 없음 / Top Knife Edge Clamping: 3mm / Vacuum Type: 제한 없음
Conveyor 폭 조절	Program (Automatic) *In/ Out 3 Stage Conveyor (3단)
PCB 이송방향	좌 =>우, 우=>좌 (전면 기준, Standard)
PCB Transfer Line	900±50mm
Squeegee Type	Metal (스테인레스 합금강) 0.2t, 0.3t / Etching Blade, 다양한 Blade 종류/ User 선택사양
Squeegee Level method	Self-Balancing
Squeegee Speed	10 ~ 200mm/sec (Inc 0.1mm/sec)
Squeegee Pressure	Load-Cell 적용, 0.1 ~ 50kg/f (program)
PCB Separation	Distance: 0.0 ~ 20.0mm (Inc 0.01mm) / Speed: 0.1 ~ 200mm/sec (Inc 0.01mm/sec)
Vision Camera	Interfaced Scan CCD F.O.V 11mm x 8mm 3-channel(LED lighting)
Vision Board	ICT Vision Board application(256 Gray Scale 8bit) EURESYS LIBRARY 적용
2D Inspection	Paste On Pad – 미납 검출 (Standard)
Fiducials (인식마크)	Register Figure Matching, Pattern Matching
Fiducials Size	0.4 ~ 5.0mm
Cleaning System	Solvent + Paper + Vacuum Control을 Program Parameter에서 사용
Dimension(mm)	1530(L)x1635(W)x1457(H)	1750(L)x1735(W)x1457(H)	1910(L)x1750(W)x1457(H)	1950(L)x1945(W)x1457(H)
Machine Weight	1,200 kg	1,400 kg	1,600 kg	1,800 kg
Machine Power	AC 220V, 50/60Hz, 6.0KW
Pneumatic (Air)	0.5Kg/f , 40NL/min
운영 Program	산업용 PC, Microsoft Windows, TFT-LCD Monitor 17”
Host Communication	SMEMA Interface(Standard), TCP/IP(OPTION)

출처 : SJINNOTECH Website
